Receiver online · localhost:8080

Every attempt,
accounted for.

A forensic workbench for the awkward space between “we sent it” and “you processed it twice.” Reproduce signed deliveries, watch each gate decide, and leave with evidence safe enough to share.

Open the delivery stream ↓ Install in two minutes

Signature: HMAC-SHA256
Replay window: 300 seconds
Payload retention: None

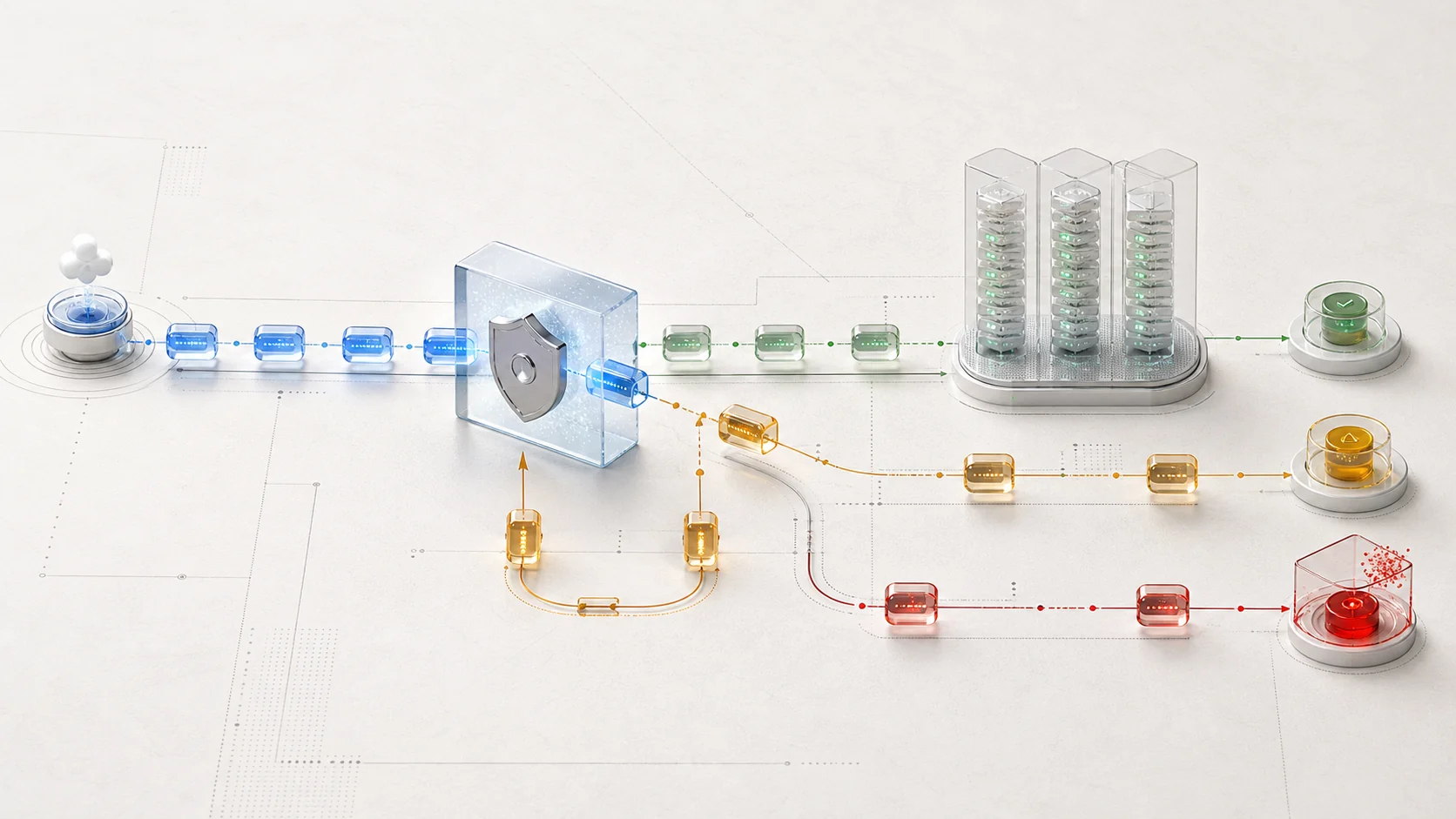

Technical illustration of webhook events passing through a signature gate into processed, retry, and collision paths — Delivery observatory verify process retry isolate

01 — Observe

A live delivery stream.
Not a pile of request bodies.

Every accepted attempt leaves a compact evidence trail: identity, age, digest, decision, and timing. Select a row to inspect what the receiver knew.

02 — Trace

One support case,
from allegation to answer.

A merchant says the same payment created two fulfilments. The provider dashboard shows two successful deliveries. Neither observation proves two unique events existed.

Case #WH-1048Duplicate fulfilment after provider timeout

Evidence complete

01 / Incoming report

“The webhook fired twice, so our order was fulfilled twice.”

That sentence joins a delivery fact to a business outcome without proving the idempotency boundary between them. First, recreate the sender’s retry under controlled conditions.

Provider attempts2

Provider responses202 / 202

Unique event IDsUnknown

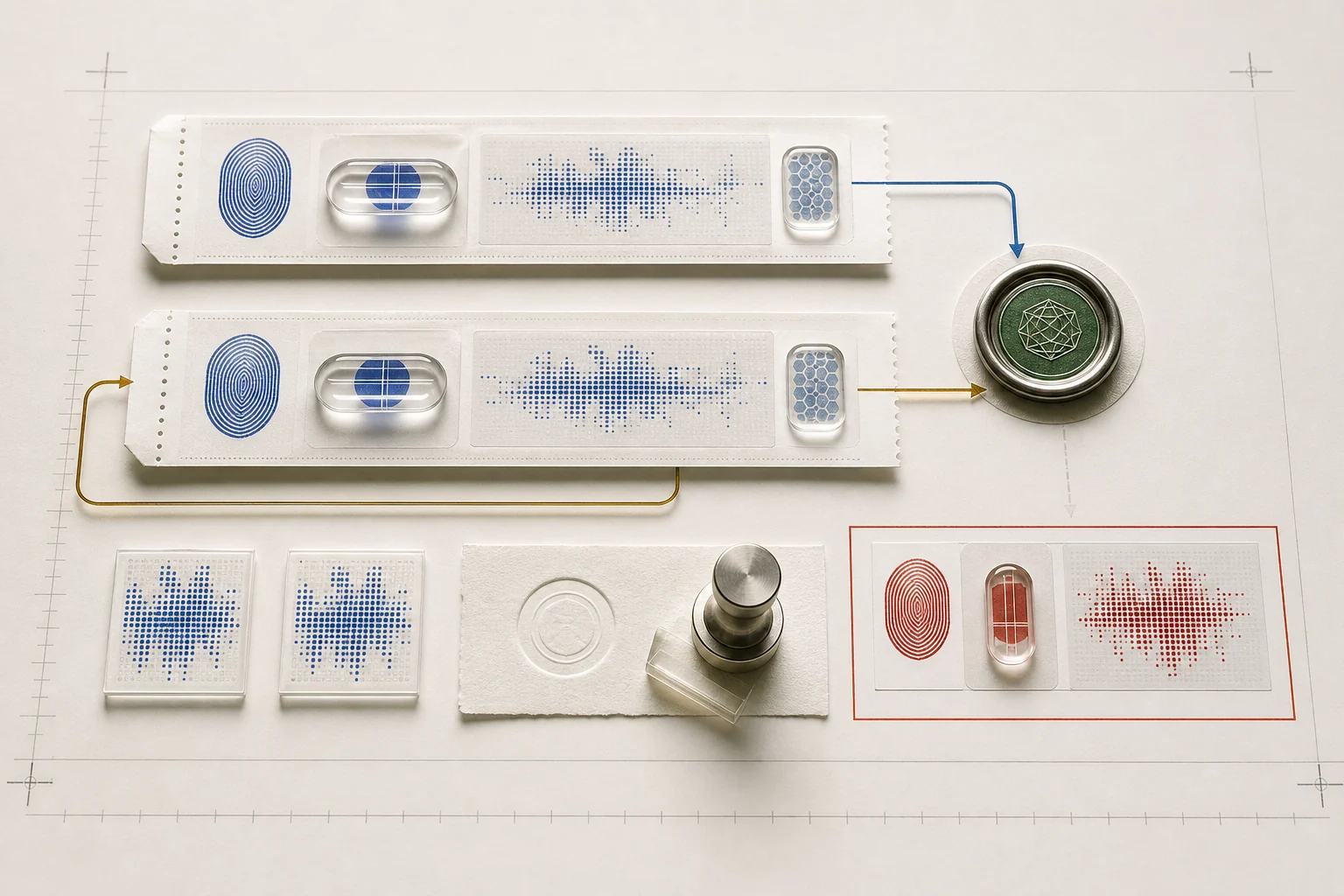

Forensic delivery evidence model showing two matching webhook attempts converging on one claim while a conflicting identity is isolated — Evidence model · WH-1048
Two matching delivery fingerprints converge on one atomic claim. The red specimen shows the materially different case: a reused identity with changed content.

✓

Resolution

The provider sent one event twice. The receiver claimed it once.

If fulfilment ran twice, the fault is beyond delivery: production likely performs the side effect before, or outside, its idempotency claim.

03 — Decide

Five gates.
One safe order.

Verification is not middleware decoration. The order determines whether untrusted bytes can reach parsing, storage, or business work.

InputExact raw bytesPOST /api/webhooks

body

Gate 01Verify HMAC + agetimestamp.body

trusted

Gate 02Hash, then parsesha256(raw_body)

digest

Gate 03Claim atomicallyBEGIN IMMEDIATE

classify

OutcomeWork or isolate202 · 202 · 409

Unseen ID

Processed

202 · claim created

Same ID + digest

Safe retry

202 · no second claim

Same ID + new digest

ID collision

409 · investigate sender

04 — Reproduce

Run the incident
on your machine.

The CLI signs provider-neutral fixtures and posts them through the real receiver. Try a known-good delivery, then introduce one failure at a time.

webhooklab — ~/investigations/WH-1048

# Install and start the evidence receiver
$ git clone https://github.com/Emmanuelasika/webhook-delivery-debugger.git
$ cd webhook-delivery-debugger && python -m venv .venv
$ source .venv/bin/activate && pip install -e ".[dev]"
$ webhooklab serve --port 8080
✓ receiver listening · signature gate active · payload retention disabled

# In terminal 2, send one event twice
$ webhooklab chaos payment.succeeded \
    --event-id evt_pay_81 --duplicate
→ attempt 1  202 processed  digest 8f21…d903
→ attempt 2  202 duplicate  digest 8f21…d903
→ claims     1

Bad signature

webhooklab chaos invoice.created
--invalid-signature

Rejected before parsing. No accepted attempt is stored.

Expired request

webhooklab chaos invoice.created
--stale

Proves the signed timestamp falls outside the 300s replay window.

Known ID probe

webhooklab replay
evt_pay_81

A changed body under a claimed ID returns a deliberate conflict.

05 — Share

The evidence you need.
Not the customer data you don’t.

The ledger retains event metadata, timing, classification, and SHA-256 digests. It intentionally does not retain payload bodies. You can attach the result to an escalation without copying an invoice, email address, or card-adjacent field into another system.

Kept event ID, type, received time, digest, outcome, duration
Not kept request body, event data, customer fields

Honest scope

A debugging receiver.
Not a production gateway.

Use it for integration development, support reproduction, and incident learning. It does not queue production traffic or replace provider logs. A shared deployment still needs authentication, tenant isolation, encrypted secrets, rate controls, a retention policy, and durable backups.

Read the operating boundaries →
